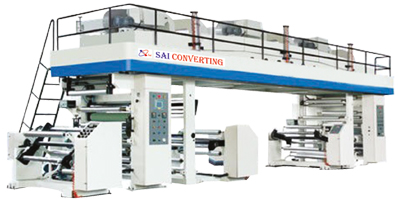

VMCH Shellac Coating Machine

vmch coating machine

VMCH Shellac Coating Machine

We provide a high quality range of VMCH Shellac Coating Machines. These machines are appreciated by our clients for their high production speed and low maintenance cost, which greatly enhances its cost effectiveness.

Technical Specifications

  • Web Width: 400 to 1100 mm
  • Coating Facility: Gravure & 3 Roll System
  • Speed : Solvent base adhesive speed 80 to 100 mtr/minute
  • VMCH Coating for foil speed 4 Gsm 40 to 80 mtr/minute and 6 Gsm 40 to 50 mtr/minute
  • Water base adhesive coating speed 35 mtr/minute Specially designed as a multipurpose plant, these machines possess facilities for polyester lamination silicon coating, adhesive coating for tapes & stickers and heat salable coating on blister.
  • Fully pneumatically lifting tunnels and impression rollers
  • Automatic balanced all steel rollers
  • Comfortable exhaust system for solvent fumes
  • Sound & Uniform heating system at high temperature
  • Air nozzles distribute uniform not air across the wash width and are placed against idle rollers for proper web support
  • VMCH tunnel is distributed in 8 Heating zones & 2 cooling zones having individual air blower for better temperature control.
