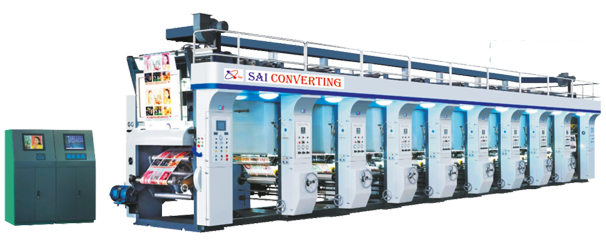

High Speed Rotogravure Printing (Model : super ultra-250)
Features:
- Air shaft with safty chuck in rewinding
- Air shaft with safty chuck shaft in unwinding
- Optional: Water cooling device
- Heat loss system to save energy
- Centralize exhause air device
- Video inspection unit (brand according to clients)
- Seven drive system
- Auto turret splice system
- Shaft less Cylinder system
- High efficiency gearbox
Technical Specifications:
- Web Width : 500 to 1400 mm
- Printing Repeat : 380 to 1000 mm
- Unwind & Rewind Dia 1000mm
- No. of color : 1 to 10 color
- Machine Speed : 250 meter per minute
- Automatic lateral register control systems
- Low friction ball screw LCA compatible with auto register control system
- Slide type one side drying hood system with pneumatics operated
- Pneumatically operated multi angle control doctor blade system (oscillation)
- Lock type with handle change over of doctor blade ensures quick change over
High Speed Rotogravure Printing (Model : Supersonic-200)
Features:
- Air shaft with safty chuck in rewinding
- Air shaft with safty chuck shaft in unwinding
- Heat loss system to save energy
- Centralize exhause air device
- Computer register system (brand according to clients)
- Video inspection unit (brand according to clients)
- Five drive system
- Shaft less cylinder system (optional)
- High efficiency gearbox
Technical Specifications:
- Web Width : 500 to 1400 mm
- Printing Repeat : 380 to 1000 mm
- Unwind & Rewind Dia 800mm
- No. of color : 1 to 10 color
- Machine Speed : 200 meter per minute
- Automatic lateral register control systems
- Low friction ball screw LCA compatible with auto register control system
- Slide type one side drying hood system with pneumatics operated
- Pneumatically operated multi angle control doctor blade system (oscillation)
- Lock type with handle change over of doctor blade ensures quick change over
Standard Rotogravure Printing (Model : Supersonic-150)
Technical Specifications:
- Web Width : 500 to 1200 mm
- Printing Repeat : 380 to 1000 mm
- No. of color : 1 to 10 color
- Speed : 150 meters per minute
- Slide type one side drying hood system
- Multi angle control doctor blade system (oscillation)
- Heavy duty steel structural (vibration free )
- Low friction dynamically balance guide rolls
- Impression and doctor blade system pneumatics
- High efficiency gearbox
- Five drive system
- Registration motorized
- Web video (optional)
- Air shaft (optional)
- ARC system (optional)
- Lock type with handle change over of blade quickly
- Heat loss system to save energy
- Ink pump (optional)
- Shaft less cylinder system (optional)
Standard Rotogravure Printing (Model : Super-120)
Technical Specifications:
- Web Width : 500 to 1000 mm
- Printing Repeat : 380 to 800 mm
- No. of color : 1 to 8 color
- Speed : 120 meters per minute
- Slide type one side drying hood system
- Low friction dynamically balance guide rolls
- Three drive System
- High efficiency gearbox
- Registration motorized (optional)
- Mechanical Shaft
- Impression pneumatic
- Doctor blade manual
- Web video (optional)
- Air shaft (optional)
