Canti Lever type slitter rewinder machine incorporates a
range of superior design feature that ensure the highest
possible quality for the final split roll.
Technical Specifications:
Web width: 800mm to 1600mm
Machine speed: 400mpm
Minimum slit width up to 25mm
Printing Materials: For wide range flexible packaging
materials from PET, BOPP, SHRINK PVC, OPP, PE to
Medium weight Aluminum foils & paper.
Unwind Maximum Reel Dia : 800 mm
Rewinding Reel Dia : 500 mm
Pneumatic Facility for Nip
AC controlled drive
Shaft less unwind
Rotary cutter (optional)
Laser core positioning system (optional)

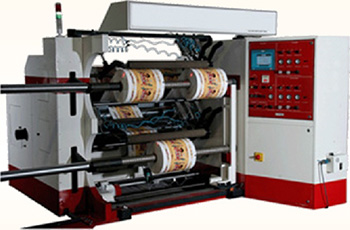

CANDILIVER SLITTING MACHINE
SPECIFICATIONS
Canti Lever type slitter rewinder machine incorporates a
range of superior design feature that ensure the highest
possible quality for the final split roll.
Technical Specifications:
Web width: 500mm to 1300mm
Machine speed: 250mpm
Minimum slit width up to 40mm
Printing Materials: For wide range flexible packaging
materials from PET, BOPP, SHRINK PVC, OPP, PE to
Medium weight Aluminum foils & paper.
Unwind Maximum Reel Dia : 900 mm
Rewinding Reel Dia : 550 mm
Pneumatic Facility for Nip

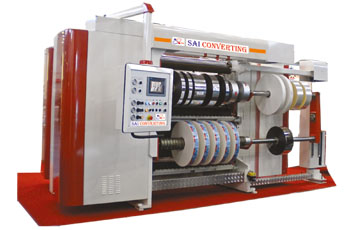

HIGH SPEED SLITTING MACHINE (MODEL:FLY-500)
Technical Specifications:
Web width: 800mm to1600mm
Machine speed: 500 mpm
Minimum slit width up to 25mm
Printing Materials: For wide range flexible packaging materials from
PET, BOPP, SHRINK PVC, OPP, PE to Medium weight
Aluminum foils & paper.
Web Width: 500 to 1600 mm
Servo controlled drive
Laser core positioning system
Unwind Maximum Reel Dia : 1000mm
Rewinding Reel Dia : 600mm
Pneumatic Facility for Nip & Door Locking
Pneumatically operated Lay on Rolls through touch pannal
Differential type rewinding systems
Master operator touch panel with data logging & reciepie control.
Shaft less unwind control.
Static discharge system.
Auto loader from floor (optional).
Rotary cutter.

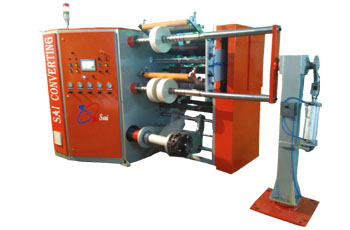

HIGH SPEED SLITTING MACHINE (MODEL:FLY-350)
SPECIFICATIONS
Canti Lever type slitter rewinder machine incorporates a
range of superior design feature that ensure the highest
possible quality for the final split roll.
Technical Specifications:
Web width: 800mm to 1200mm.
Machine speed: 350mpm.
Minimum slit width up to 50mm. (optional 25mm).
Printing Materials: For wide range flexible packaging
materials from PET, BOPP, SHRINK PVC, OPP, PE to
Medium weight Aluminum foils & paper.
